0201 Suppoeted Microscope
for Mounter

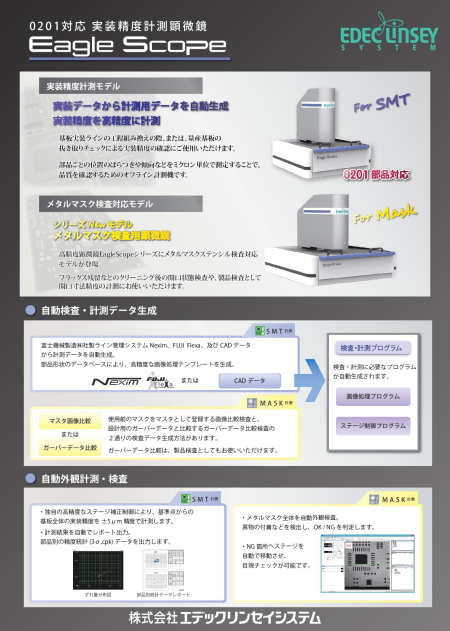

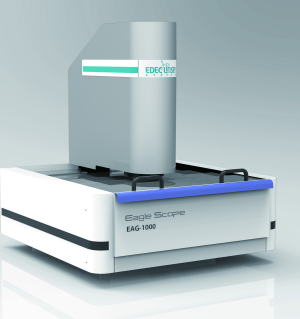

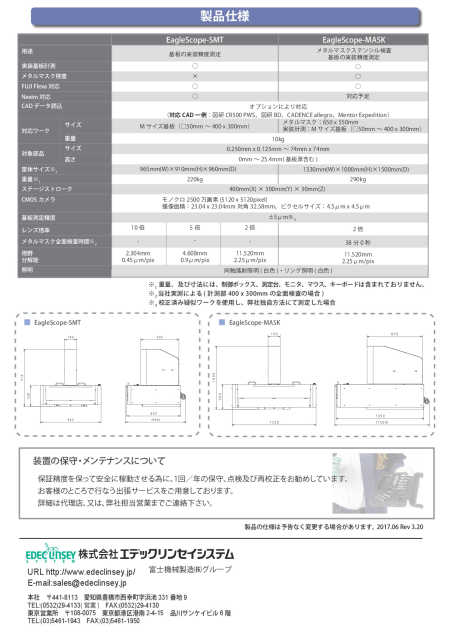

Eagle Scope [EAG-1000] |
 |
| Dimensions (WxHxD) |
965mm x 910mm x 960mm |
| Stage Stroke (ＸxＹxＺ) |
400mm x 300mmx 30mm |
| Weight |
220kg |
| CMOS Camera |
Pixel Number |
| Sensor Size |
| Pixel Size |
|
25M pixel (5120×5120 pixel) |
| 23.04mm×23.04mm, Diagonal 32.58mm |
| 4.5μm(H)×4.5μm(V) |
| Lens Mag. |
10× |
5× |
2× |
| Measurement Accuracy |
±5μm |
±10μm |
±25μm |
| FOV. |
2.304ｍｍ |
4.608mm |
11.520mm |
| Resolution |
0.45μm/pixel |
0.9μm/pixel |
2.25μm/pixel |
|
| WD |
Co-axial(White LED)、Ring(White LED) |
| Illumination |
M size PCB( □50mm ～ 400 × 300 mm) |
| Measurable PCB Size |
0.250mm×0.125mm ～ 74mm×74mm |
| Measurable Parts Height |
0mm ～ 25.4mm（Include PCB thickness） |
| Measurable PCB Weight |
10kg |
| Stage Speed(Max) |
83.33mm/sec |
| Auto Focus Range(Max) |
±3mm |
| Precision guarantee temperature |
23℃±1℃ |
| Power |
AC100V 50/60Hz |
| Image Processing |
Filter |
Binarization, Median filter, Gamma correction,
Smoothing,Contrast, Brightness, Gray conversion |
| Measurement |
【Manual】Distance between two point / line,Angle
between two line, Circle radius, Arc Angle
【Edge Search】Distance, Angle, Diameter, Coordinate |
※Dimension and weight is not include control box, monitor, mous e, and keyboard. |
